New Cessna Baffle Wires

Precision Crafted
Baffle Wires & Springs

Made to exacting standards and comparable to the OEM Cessna Baffle Wires used on Cessna Aircrafts with added corrosion protection!



- AVAILABLE NOW -

shape
Three Baffle Wires

Crafted Baffle Wires

Stop wasting your time or your A&P's time trying to make baffle wires. Install our baffle wires instead! Your satisfaction is guaranteed!

Precision "Loop"

Latest CNC wire forming equipment used to craft consistent baffle wire looped head for easy installation and removal. The "Loop Head" is part of the overall length. For example, a 12" wire is about 11-1/4" of straight wire below the head.

Protective Coating

All our baffle wires have a Zinc protective coating giving them an edge over the OEM Cessna baffle wires.

Quality Control

Our baffle wires were tested against OEM Cessna baffle wires and passed our rigidity and dead weight testing. Each wire is hand inspected before packaging.

3 Lengths

Our baffle wires come in three lengths, 6", 12", and 20". Just cut the wire to the length you need, make the "hook" using the provided template, and install.   You can click HERE to download the hook bend template.

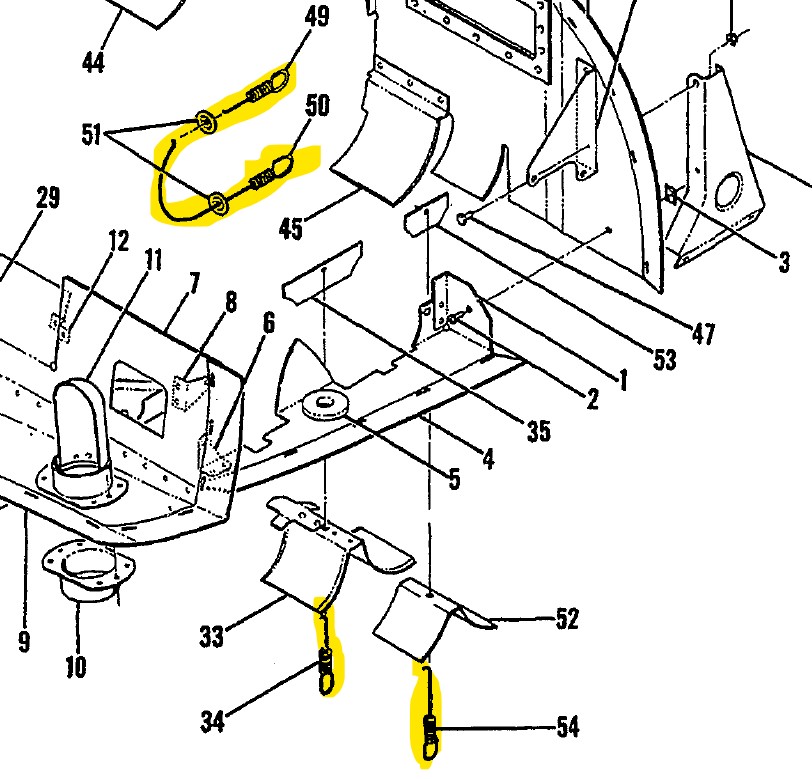

Cessna 150 Continental O-200

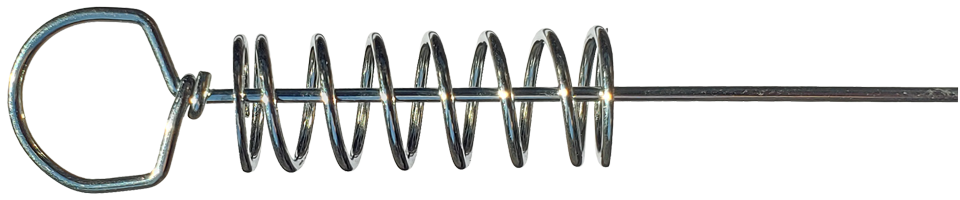

Baffle Wire Spring

Baffle Wire Springs

Stop looking at hardware stores for baffle wire springs that MIGHT work! Any good A&P/IA knows how critical the right spring is to prevent baffling chaffing. Why risk it, our baffle wires come with the springs you need!

Engineered

Better than hardware store springs! Our springs were engineered to have similar properties to the OEM Cessna baffle springs.

Protective Coating

All our baffle wire springs come with a Zinc protective coating, just like our baffle wires.

Size & Tension

Our springs have similar dimensions and compression tension as the OEM Cessna baffle springs. Use them with confidence!

Quality Control

Every spring a hand checked before packaging to ensure it meets our high standards.

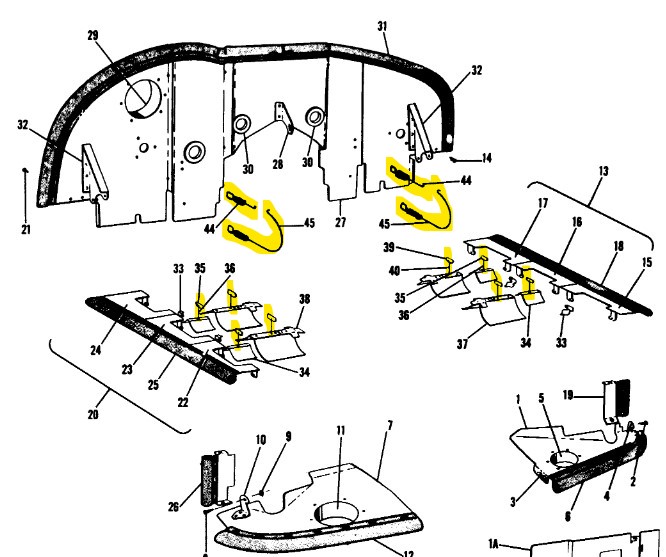

Cessna 172 Continental O-300

Cross Reference

A cross reference table to help you order the right items.

Current Part # Supersedes Use Fulgent Air #
0450211-1BWS-06
0450211-2BWS-06
0450277-2010450277-1BWS-06
0450277-2020450277-2BWS-12
0450277-2030450277-3BWS-06
0450277-2040450277-4BWS-20
0450277-2050450277-5BWS-06
0450277-2060450277-6BWS-12
0450277-2070450277-7BWS-12
0450277-2080450277-8BWS-12
0450277-2090450277-9BWS-20
0450277-2100450277-10BWS-20
0450277-2120450277-12BWS-20
0450277-2130450277-13BWS-20
0450277-2140450277-14BWS-20
0450277-2150450277-15BWS-20
0450277-2160450277-16BWS-12
0450277-2170450277-17BWS-12
0450277-2180450277-18BWS-12
0450277-2190450277-19BWS-12

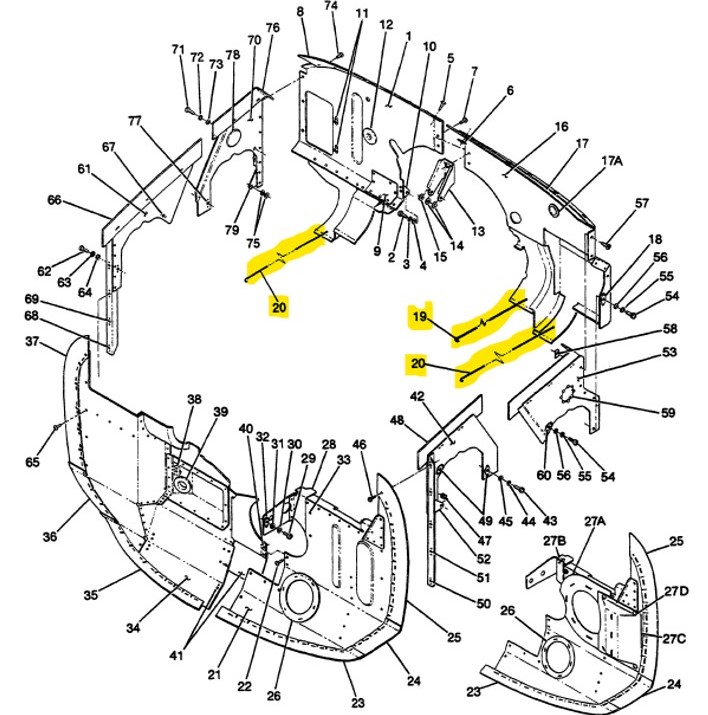

Cessna 172 Lycoming Engine

Frequently Asked Questions

Please review all the frequently asked questions below. If you have a question that is not answered or not answered to your satisfaction, please use email us using the form below.

Our Kit Pricing

If you don't see a kit that fits your needs we'll be happy to create more kits with your help. Just use the Contact Us form below and tell us the Year, Make, Model, and the number of each length of wires (6", 12", and 20") the baffling takes and we'll get back to you with the kit price!

C120/140/150 O-200
$ 48.00

USD each kit

  • Kit #: C-150
  • 6 each 6" baffle wires
  • 2 each 12" baffle wires
  • 8 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C170 O-145
$ 47.00

USD each kit

  • Kit #: C-170
  • 8 each 6" baffle wires
  • 8 each baffle springs
  • Extra 6" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C170A/172 O-300
$ 68.00

USD each kit

  • Kit #: C-172
  • 10 each 6" baffle wires
  • 2 each 12" baffle wires
  • 12 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C172 O-320/360
$ 44.00

USD each kit

  • Kit #: C-172Lyc
  • 4 each 20" baffle wires
  • 4 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C175 GO-300
$ 27.00

USD each kit

  • Kit #: C-175
  • 4 each 6" baffle wires
  • 4 each baffle springs
  • Extra 6" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C177/RG O-320/360
$ 44.00

USD each kit

  • Kit #: C-177
  • 4 each 20" baffle wires
  • 4 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C180/182 (I)O-470/520/540
$ 38.00

USD each kit

  • Kit: C-182
  • 2 each 6" baffle wires
  • 2 each 20" baffle wires
  • 4 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C185/188 (I)O-470/520
$ 44.00

USD each kit

  • Kit: C-185
  • 2 each 6" baffle wires
  • 3 each 20" baffle wires
  • 5 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C205/205A IO-470
$ 48.00

USD each kit

  • Kit: C-205
  • 1 each 6" baffle wires
  • 3 each 12" baffle wires
  • 1 each 20" baffle wires
  • 5 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C206 ALL
$ 54.00

USD each kit

  • Kit: C-206
  • 2 each 12" baffle wires
  • 3 each 20" baffle wires
  • 5 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C207 ALL
$ 42.00

USD each kit

  • Kit: C-207
  • 1 each 6" baffle wires
  • 1 each 12" baffle wires
  • 2 each 20" baffle wires
  • 4 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C210 1960-63
$ 29.00

USD each kit

  • Kit: C-210-1
  • 1 each 6" baffle wires
  • 2 each 12" baffle wires
  • 3 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C210 1964-86
$ 52.00

USD each kit

  • Kit: C-210-2
  • 1 each 6" baffle wires
  • 1 each 12" baffle wires
  • 3 each 20" baffle wires
  • 5 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
CT210 1970-86
$ 45.00

USD each kit

  • Kit: C-T210
  • 2 each 12" baffle wires
  • 2 each 20" baffle wires
  • 4 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
CT303, 1 ENGINE
$ 21.00

USD each kit

  • Kit: C-T303
  • 1 each 6" baffle wires
  • 1 each 12" baffle wires
  • 2 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C310 1955-57, 1 ENGINE
$ 60.00

USD each kit

  • Kit: C-310
  • 8 each 6" baffle wires
  • 2 each 12" baffle wires
  • 10 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C310B-Q 1957-74, 1 ENGINE
$ 41.00

USD each kit

  • Kit: C-310BQ
  • 2 each 6" baffle wires
  • 3 each 12" baffle wires
  • 5 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
CT310P-Q 1969-74, 1 ENGINE
$ 73.00

USD each kit

  • Kit: C-T310P
  • 2 each 6" baffle wires
  • 4 each 12" baffle wires
  • 2 each 20" baffle wires
  • 8 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C310R/T310R 1975-81, 1 ENGINE
$ 41.00

USD each kit

  • Kit: C-310R
  • 1 each 6" baffle wires
  • 2 each 12" baffle wires
  • 1 each 20" baffle wires
  • 4 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C335, 1 ENGINE
$ 32.00

USD each kit

  • Kit: C-335
  • 1 each 6" baffle wires
  • 1 each 12" baffle wires
  • 1 each 20" baffle wires
  • 3 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C336, 1 ENGINE
$ 39.00

USD each kit

  • Kit: C-336
  • 4 each 12" baffle wires
  • 4 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C337/P337/T337, FRONT ENGINE
$ 48.00

USD each kit

  • Kit: C-337F
  • 5 each 12" baffle wires
  • 5 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C337/P337/T337, REAR ENGINE
$ 39.00

USD each kit

  • Kit: C-337R
  • 4 each 12" baffle wires
  • 4 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C340/340A, 1 ENGINE
$ 50.00

USD each kit

  • Kit: C-340
  • 3 each 6" baffle wires
  • 3 each 12" baffle wires
  • 6 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C401/402 ALL, 1 ENGINE
$ 42.00

USD each kit

  • Kit: C-401
  • 1 each 6" baffle wires
  • 1 each 12" baffle wires
  • 2 each 20" baffle wires
  • 4 each baffle springs
  • Extra 20" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
C414 ALL, 1 ENGINE
$ 50.00

USD each kit

  • Kit: C-414
  • 3 each 6" baffle wires
  • 3 each 12" baffle wires
  • 6 each baffle springs
  • Extra 12" wire, just in case...
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1

Single Wire Pricing

For those folks that just need a couple of baffle wires. Discounts are shown on eBay for 2 or more.

We can also offer a special discount on orders of 10 or more baffle wires in any mix. Please use the Contact Us form below and let us know what you would like.

We also provide special pricing for FBO and aircraft maintenance and repair shops. Just contact us!

6" Baffle Wire & Spring
$ 6.75

USD each

  • 6" baffle wire
  • Baffle wire spring
  • Quantity Discounts
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
12" Baffle Wire & Spring
$ 9.25

USD each

  • 12" baffle wire
  • Baffle wire spring
  • Quantity Discounts
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
20" Baffle Wire & Spring
$ 11.25

USD each

  • 20" baffle wire
  • Baffle wire spring
  • Quantity Discounts
  • Wire bending template
  • $5.95 Shipping (USA)
bottom-part1
